N. Lake Shore Drive
Franklin Delano Roosevelt Memorial Bridge

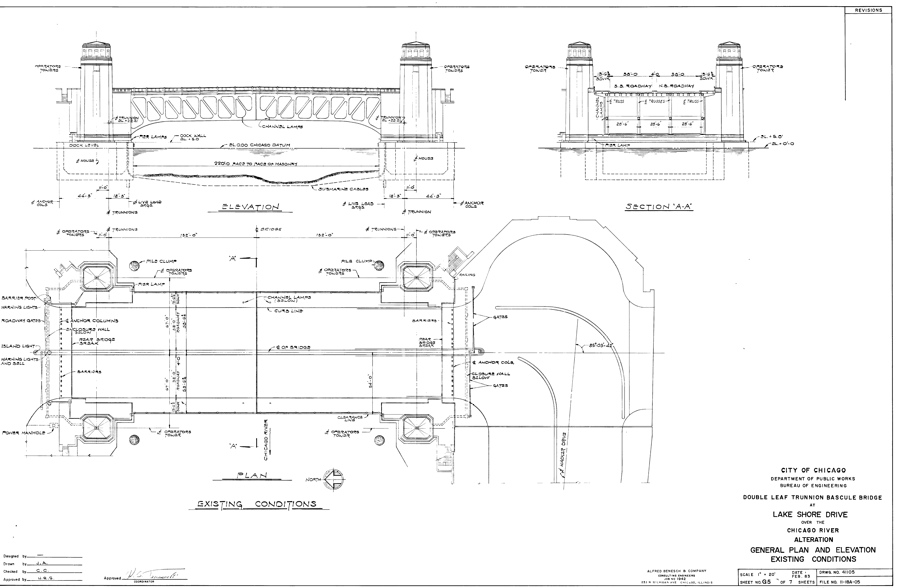

Plan and Elevation drawing (1983)
(Courtesy of the Chicago Department of Transportation - Division of Engineering)
Find Us On:
Menu:
- Home
- About / Contact
- Background / History
- Bridges
- Chicago River - Main Stem
- N. Lake Shore Drive (FDR Memorial Bridge)
- N. Columbus Drive (W. P. Fahey Bridge)
- N. Michigan Avenue (DuSable Bridge)
- N. Wabash Avenue (Irv Kupcinet Bridge)
- N. State Street (Bataan Corregidor Memorial Bridge)
- N. Dearborn Street
- N. Clark Street
- N. La Salle Street (Marshall Suloway Bridge)
- N. Wells Street
- N. Franklin-Orleans Street
- Chicago River - South Branch
- Chicago River - Main Stem
- Stories / Cultural
- Galleries
Links:
- Videos
- Bridge Quick Facts
- Dedicated 10/5/1937
- Designers: Strauss Engineering Company and Hugh Young
- Classification: Double Deck (Auto/Auto); Deck Trusses
- Clear Span: 220 feet
- Trunnion-to-Trunnion Span: 264 feet
- Width: 108 feet
- Leaf Weight: 6,420 tons
- Height above the Water: 25 feet
- Construction Cost in 1937: $2.6 million
- Average Daily Vehicular Traffic (2006): 112,000
- Annual Lifts (2006): 49
- Last Rehabilitated: 1987
