W. Jackson Boulevard

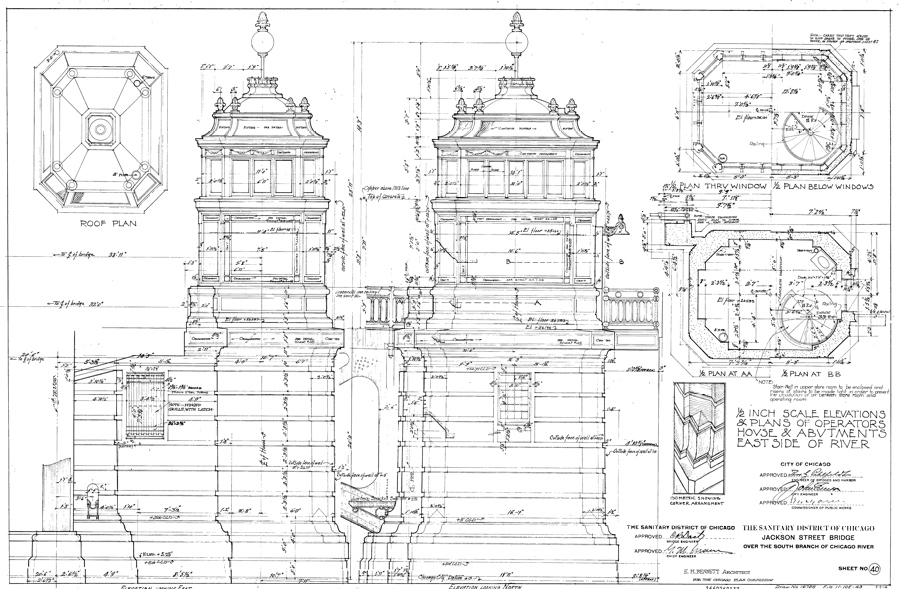

Elevation drawing East Tender House (1914)
(Courtesy of the Chicago Department of Transportation - Division of Engineering)
