W. Madison Street
Lyric Opera Bridge

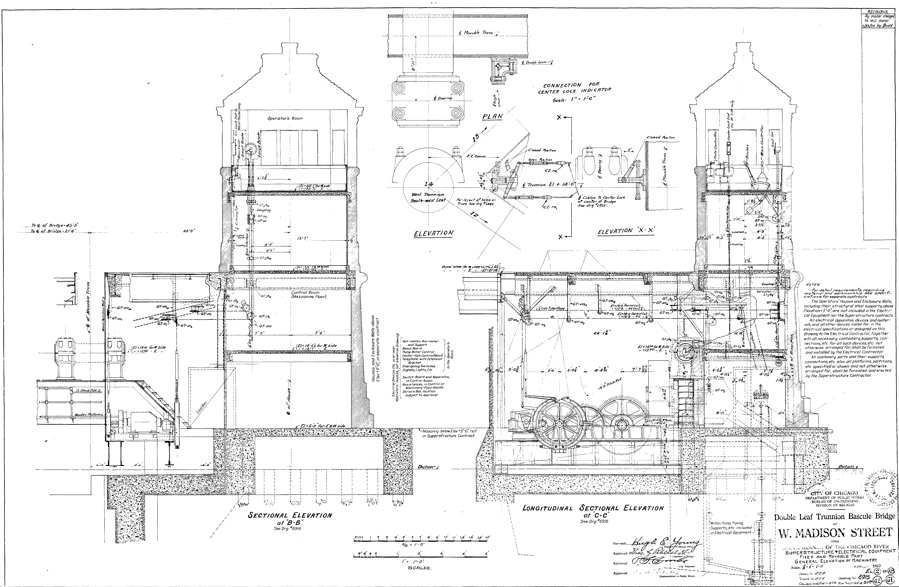

General Equipment Elevation drawing (1920)
(Courtesy of the Chicago Department of Transportation - Division of Engineering)
Find Us On:
Menu:
- Home
- About / Contact
- Background / History
- Bridges
- Chicago River - Main Stem
- N. Lake Shore Drive (FDR Memorial Bridge)
- N. Columbus Drive (W. P. Fahey Bridge)
- N. Michigan Avenue (DuSable Bridge)
- N. Wabash Avenue (Irv Kupcinet Bridge)
- N. State Street (Bataan Corregidor Memorial Bridge)
- N. Dearborn Street
- N. Clark Street
- N. La Salle Street (Marshall Suloway Bridge)
- N. Wells Street
- N. Franklin-Orleans Street
- Chicago River - South Branch
- Chicago River - Main Stem
- Stories / Cultural
- Galleries
Links:
- Videos
- Bridge Quick Facts
- Dedicated: 11/29/1922
- Designers: Thomas G. Pihlfeldt, Hugh E. Young, John Ericson, Edward Bennett
- Classification: Single Deck; Rail Height Trusses
- Clear Span: 189 feet
- Trunnion-to-Trunnion Span: 221 feet
- Width: 72 feet
- Leaf Weight: 1,800 tons
- Height above the Water: 16 feet
- Construction Cost in 1922: $1.5 million
- Average Daily Foot Traffic (1999): 41,586
- Average Daily Vehicular Traffic (2006): 9,900
- Annual Lifts (2006): 68
- Last Rehabilitated: 1994
- Cultural: Featured in two photographs in the book “The Chicago Exhibition” by Michele Fitzsimmons and Diane Schmidt.
- Named the Lyric Opera Bridge in 1989. Movie: Just Visiting (2001).
