W. Randolph Street

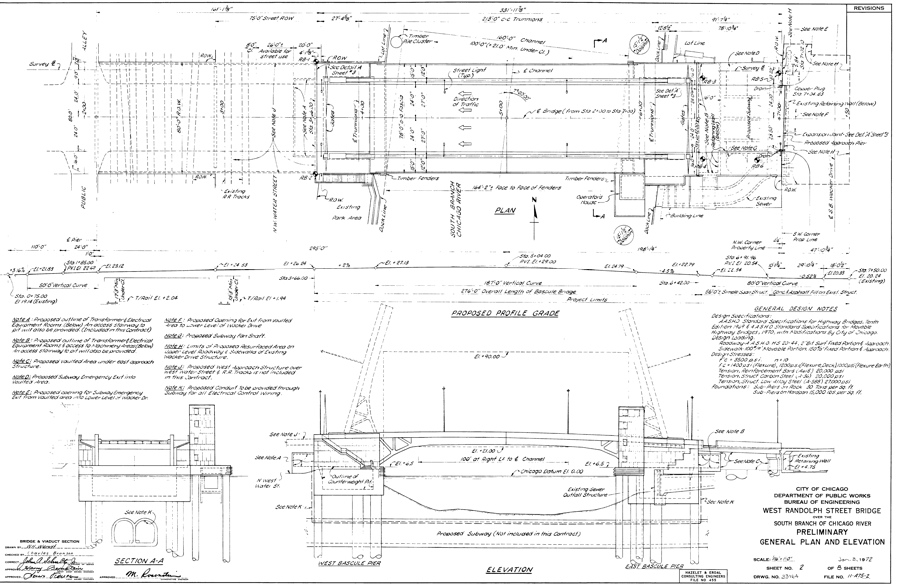

General Plan and Elevation drawing (1984)
(Courtesy of the Chicago Department of Transportation - Division of Engineering)
Find Us On:
Menu:
- Home
- About / Contact
- Background / History
- Bridges
- Chicago River - Main Stem
- N. Lake Shore Drive (FDR Memorial Bridge)
- N. Columbus Drive (W. P. Fahey Bridge)
- N. Michigan Avenue (DuSable Bridge)
- N. Wabash Avenue (Irv Kupcinet Bridge)
- N. State Street (Bataan Corregidor Memorial Bridge)
- N. Dearborn Street
- N. Clark Street
- N. La Salle Street (Marshall Suloway Bridge)
- N. Wells Street
- N. Franklin-Orleans Street
- Chicago River - South Branch
- Chicago River - Main Stem
- Stories / Cultural
- Galleries
Links:
- Videos
- Bridge Quick Facts
- Dedicated: 12/21/1984
- Designers: Division of Bridges and Viaducts
- Classification:Single Deck; Box Girders
- Clear Span: 164 feet
- Trunnion-to-Trunnion Span: 213 feet
- Width: 80 feet
- Leaf Weight: 1,400 tons (est)
- Height above the Water: 22 feet
- Construction Cost in 1984: $18 million
- Average Daily Foot Traffic (1999): 10,356
- Average Daily Vehicular Traffic (2006): 6,300
- Annual Lifts (2006): 45
- Last Rehabilitated:NA
- Engineering Drawings
- Bridge Page 1
Unless otherwise noted, content of chicagoloopbridges.com © 2008-2024 James S. Phillips
