N. Columbus Drive
William P. Fahey Bridge

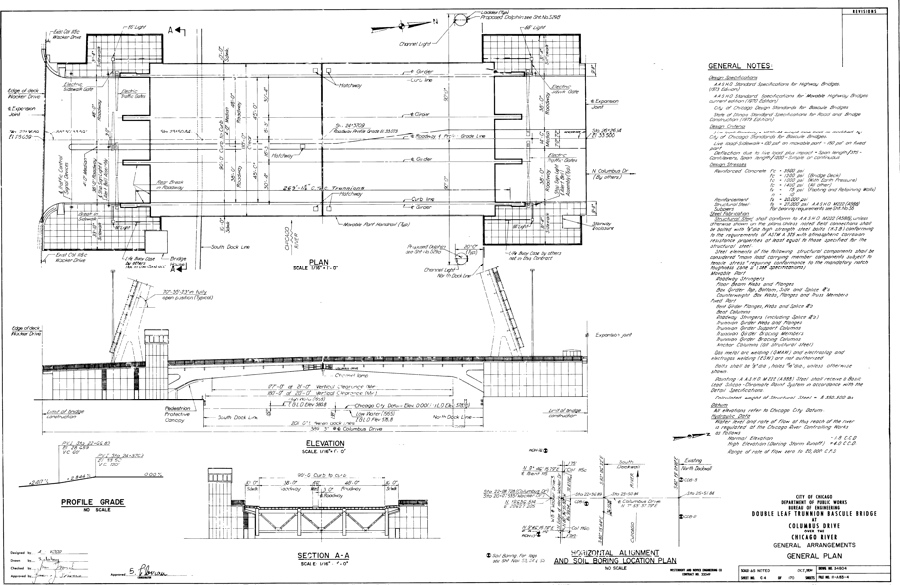

Original Bridge Plan/Elevation drawing (1982)
(Courtesy of the Chicago Department of Transportation - Division of Engineering)
Find Us On:
Menu:
- Home
- About / Contact
- Background / History
- Bridges
- Chicago River - Main Stem
- N. Lake Shore Drive (FDR Memorial Bridge)
- N. Columbus Drive (W. P. Fahey Bridge)
- N. Michigan Avenue (DuSable Bridge)
- N. Wabash Avenue (Irv Kupcinet Bridge)
- N. State Street (Bataan Corregidor Memorial Bridge)
- N. Dearborn Street
- N. Clark Street
- N. La Salle Street (Marshall Suloway Bridge)
- N. Wells Street
- N. Franklin-Orleans Street
- Chicago River - South Branch
- Chicago River - Main Stem
- Stories / Cultural
- Galleries
Links:
- Videos
- Bridge Quick Facts
- Dedicated 10/31/1982
- Designers: Division of Bridges and Viaducts
- Classification: Single Deck; Box Girders
- Clear Span: 180 feet
- Trunnion-to-Trunnion Span: 269 feet
- Width: 111 feet
- Leaf Weight: 3,400 tons
- Height above the Water: 21 feet
- Construction Cost in 1982: $33 million
- Average Daily Vehicular Traffic (2006): 23,700
- Annual Lifts (2006): 49
- Cultural: Movie - Transformers: Dark of the Moon (2011)
