N. Wabash Avenue
Irv Kupcinet Bridge

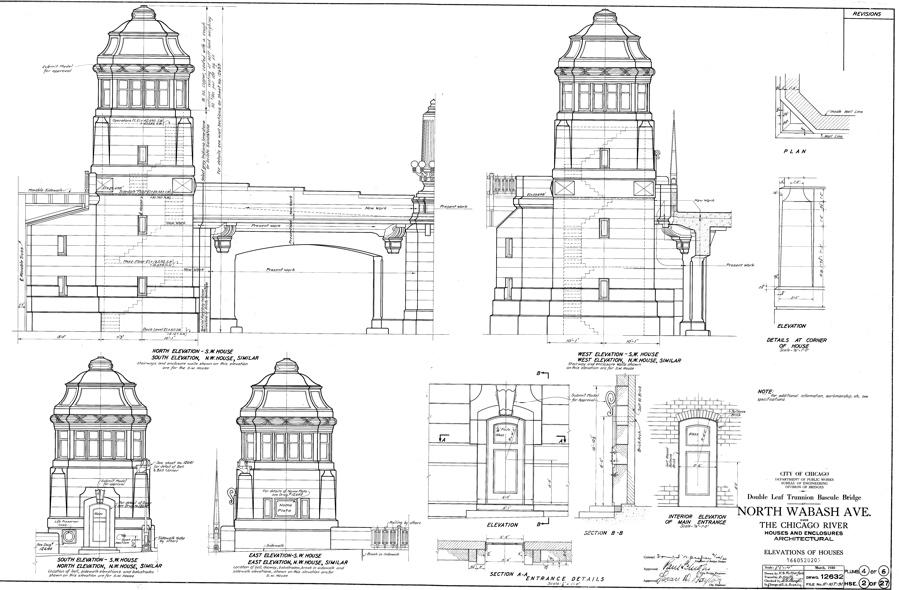

Elevation drawing of the Bridge Tender Houses (1930)
(Courtesy of the Chicago Department of Transportation - Division of Engineering)
Find Us On:
Menu:
- Home
- About / Contact
- Background / History
- Bridges
- Chicago River - Main Stem
- N. Lake Shore Drive (FDR Memorial Bridge)
- N. Columbus Drive (W. P. Fahey Bridge)
- N. Michigan Avenue (DuSable Bridge)
- N. Wabash Avenue (Irv Kupcinet Bridge)
- N. State Street (Bataan Corregidor Memorial Bridge)
- N. Dearborn Street
- N. Clark Street
- N. La Salle Street (Marshall Suloway Bridge)
- N. Wells Street
- N. Franklin-Orleans Street
- Chicago River - South Branch
- Chicago River - Main Stem
- Stories / Cultural
- Galleries
Links:
- Videos
- Bridge Quick Facts
- Dedicated 12/20/1930
- Designers: Thomas G. Pihlfeldt, Donald Becker, Edward H. Bennet, Hugh Young
- Classification:Single Deck; Rail Height Trusses
- Clear Span: 232 feet
- Trunnion-to-Trunnion Span: 269 feet
- Width: 90 feet
- Leaf Weight: 2,600 tons
- Height above the Water: 22 feet
- Construction Cost in 1930: $2.7 million
- Average Daily Foot Traffic (1999): 7,047
- Average Daily Vehicular Traffic (2006): 5,800
- Annual Lifts (2006): 41
- Last Rehabilitated: 2003
- Cultural: Movies – About Last Night (1986), Straight Talk (1991), Wanted (2008), The Dark Knight, Transformers: Dark of the Moon (2011) (2008)
- Engineering Drawings
- Bridge Page 1
