W. Jackson Boulevard

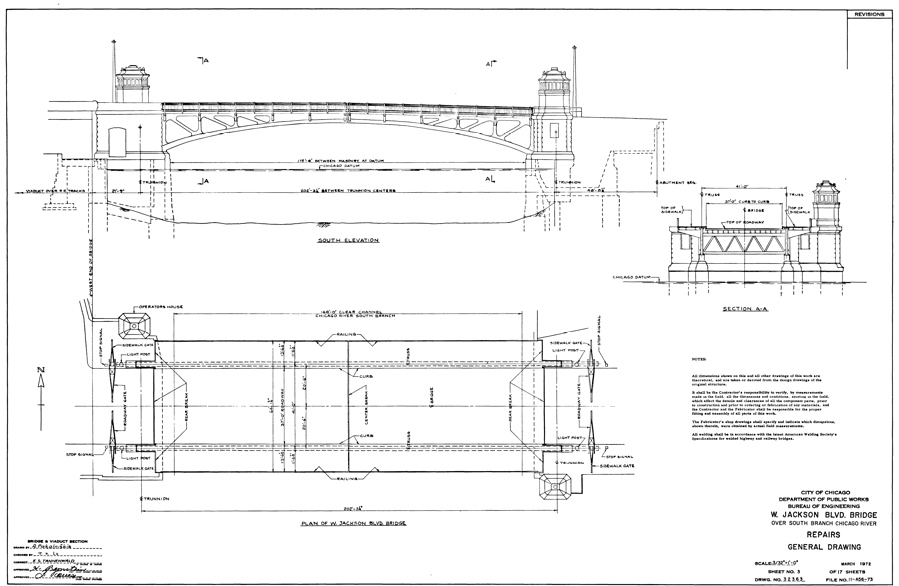

Bridge Plan and Elevation House (1973)
(Courtesy of the Chicago Department of Transportation - Division of Engineering)
